Deep Robotics DR01

Deep Robotics

China

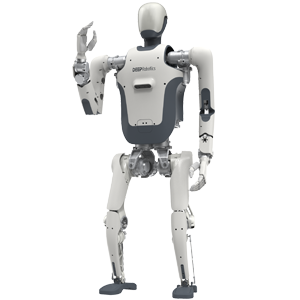

The DR01 humanoid robot, developed by Hangzhou-based Deep Robotics and unveiled at the 2024 World Robotics Conference in Beijing, represents a significant step in embodied intelligence exploration. Designed as an 'AI plus' intelligent physical agent, the DR01 serves primarily as a platform for advancing artificial intelligence through adaptive learning and big data integration. Standing at approximately 170 cm tall and weighing around 80 kg, it features 12 degrees of freedom overall, with a focus on bipedal locomotion rather than advanced manipulation (hands rated N/A). Its architecture emphasizes lightweight yet robust construction, incorporating proprietary J60 lightweight joints for agile movements and J100 high-torque joints for demanding tasks. The J60 joints, weighing just 480g each, deliver a peak torque of 19.94 Nm, a torque-weight ratio up to 56.48 Nm/kg, and peak speeds of 24.18 rad/s, integrated with frameless torque motors, servo drivers, absolute encoders (14-bit resolution), and CAN communication at 1 kHz control frequency. J100 joints provide ultra-high torque, with variants reaching 315 Nm peak and densities up to 107.5 Nm/kg, IP67 protection for outdoor use, EtherCAT communication for multi-joint coordination, and operation from 28-95V DC. The robot's core strength lies in its mobility and perception systems. Achieving a maximum walking speed of over 1.6 m/s (equivalent to 5.8 km/h), DR01 navigates challenging terrains including 18 cm steps, 25° slopes, and uneven surfaces. It demonstrates exceptional balance recovery, maintaining stable gait under disturbances like slippery conditions, pushes, pulls, or external forces, as shown in outdoor tests where it traverses rugged paths and recovers from stumbles on stairs. This is enabled by 'fusion perception capability,' which integrates the robot's proprioceptive sensors (joint encoders, IMUs implied) with environmental perception (likely depth cameras, LiDAR, or stereo vision, though specific models undisclosed), processed through learning algorithms that combine sensing, control, and prediction for real-time adaptation. AI architecture revolves around autonomous learning paradigms, leveraging reinforcement learning and imitation from big data to generate new behaviors. Deep Robotics plans extensive AI training sessions on DR01 to iterate embodied intelligence, focusing on end-to-end policies for locomotion and interaction. No specific LLMs or models like Transformer-based policies are named, but the system supports skill emergence in dynamic environments, positioning it for future industrial applications like repetitive tasks, hazardous inspections, and home assistance. Strength is rated at 15 kg payload, with 2-hour runtime per charge, though battery details (kWh/voltage) remain unspecified. Thermal management via joint-integrated temperature detection, and materials likely lightweight alloys/composites for 80 kg total weight. As a prototype (availability: prototype, price ~$200,000), DR01 has no widespread real-world deployments yet, but demonstrations include stair climbing, steel bar traversal, and off-road testing. It builds on Deep Robotics' quadruped expertise (Lite3, X30), extending to humanoids with shared joint tech. Future iterations like DR02 hint at progression. Challenges include limited DoF for manipulation (score 2/10), lack of verified human safety, and N/A ratings for CPU/GPU, OS, ingress protection, and LLM integration, indicating research-stage maturity. Overall, DR01 exemplifies China's push in humanoid robotics, rivaling efforts like Tesla Optimus through robust hardware and learning-focused software.
